LT Motors Test System

System

Electric motors are an important driving force in industrial production, designing and developing new advanced methods can improve efficiency and performance. High efficiency and energy conservation are the overall development trend of the global motor manufacturing industry.

When it comes to large-scale production, APCs Motor Test system is specifically designed to test LT motor as per international standard. Through robotic technology and auto report generating software, APCS test system enable mass production with strict quality controls. This helps to manufacturer, meeting high demand volume in the global market by reducing the testing time & human errors.

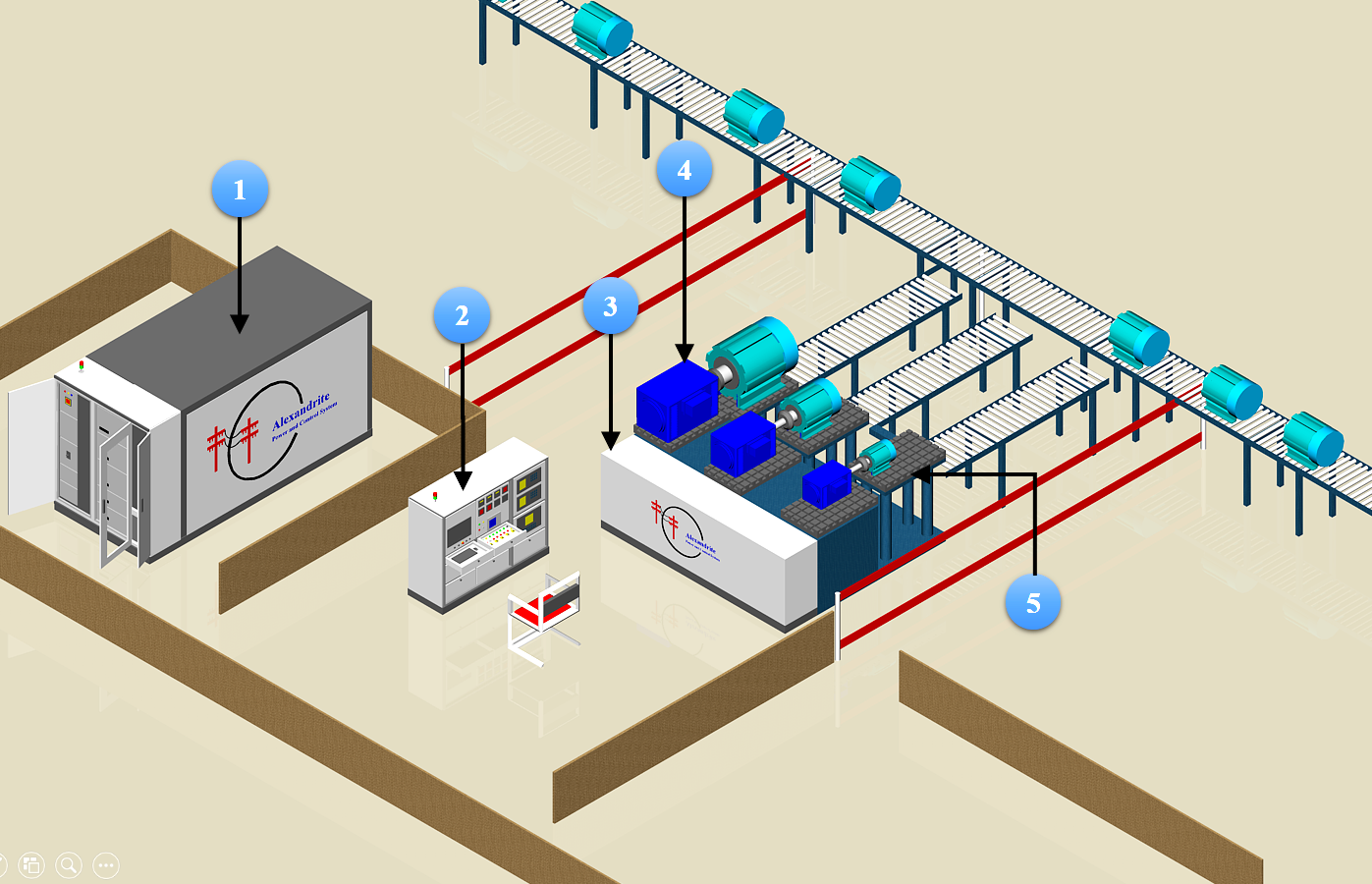

System Components

  1. Automatic Variable Voltage Source.
  2. Control Test Bench.
  3. CT/PT Setup.
  4. Dynamometer/ DC generator/ loading motor.
  5. Adjustable Motor Test Bed.
  6. Test Report Generation Software

FEATURES

  • Meets the all IS, IEC, IEEE & NABL standard.
  • Regenerative motor test system saves the energy.
  • Through test report generation software, It saves report generation time during testing.
  • Through auto switching of test sequences, It saves test object cable connection time during testing.
  • Through robotic technology and automation, It Increases the productivity of testing by reducing the human
    errors & testing time.

Test Covered by System

Sr. No.TESTSSr. No.TESTS
C.Routine Test
9.Insulation Resistance Test.10.No load loss Test and no load current.
11.Starting torque test (Blocked Rotor Test).12.Winding Resistance Test.
13.High Voltage Test.14.Vibration test.
D.Type Test
5.Full load loss & full load current.6.C- Tan delta test.
7.Rated torque test at rated speed.8.Measurement of Break-down & Running Torque.
9.Pull up torque test.10.Temperature Rise Test.
11.Efficiency Test.12.Friction And Windage Losses Measurement.
13.Momentary Overload Test.14.Over Speed Test.
15.Noise level test.16.Core Loss Test.
